Bike Schindelhauer Lotte 8-Speed 56 Ruby Red

Schindelhauer bike

Bike Schindelhauer Lotte 8-Speed 56 Ruby Red

Aluminium 6061-T6 frame
8-speed Shimano
Brooks B17 S Lady saddle
Continental Contact Urban 28-622 tires

Made-to-order

Colour

Red

Silver

Frame size

9 900 AED

Description

Cute Lotte represents a comfy, pleasing ride with a sport vibe similar to our Ludwig. Being of a small weight and equipped with an 8-speed gear hub, you are definitely to sail through the city in a relaxed state of mind.

Features

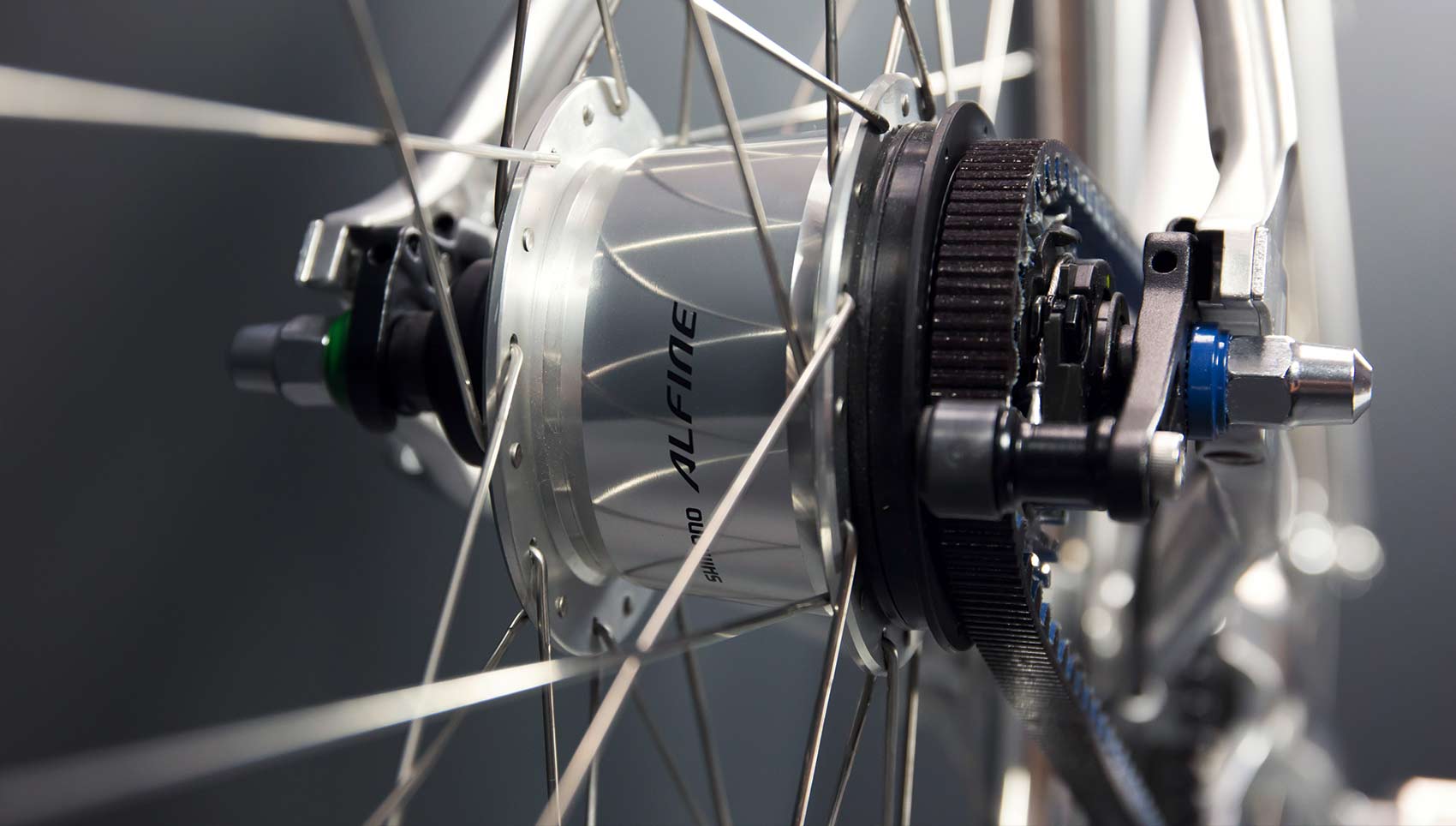

Internal Gear System

Internal refers to a system that houses all the gears inside a weatherproof rear hub. They are available in multiple speeds. Internal gear systems are low-maintenance, easy-to-use and allow the rider to change gears without pedaling or even standing still.

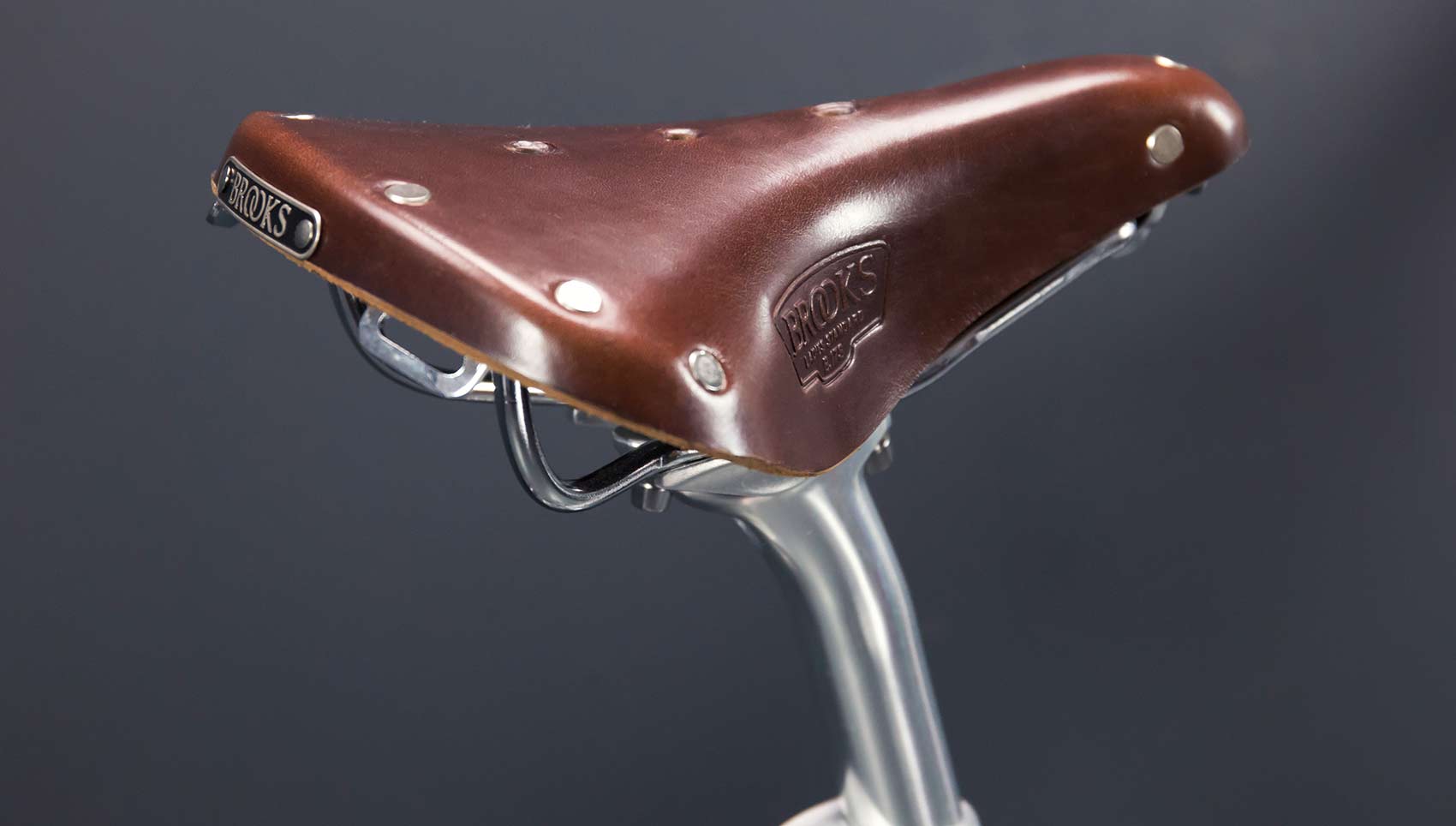

Brooks Leather Saddle

A hand-made Brooks saddle which gradually shapes to the rider's form to become a truly customised and supportive seat.

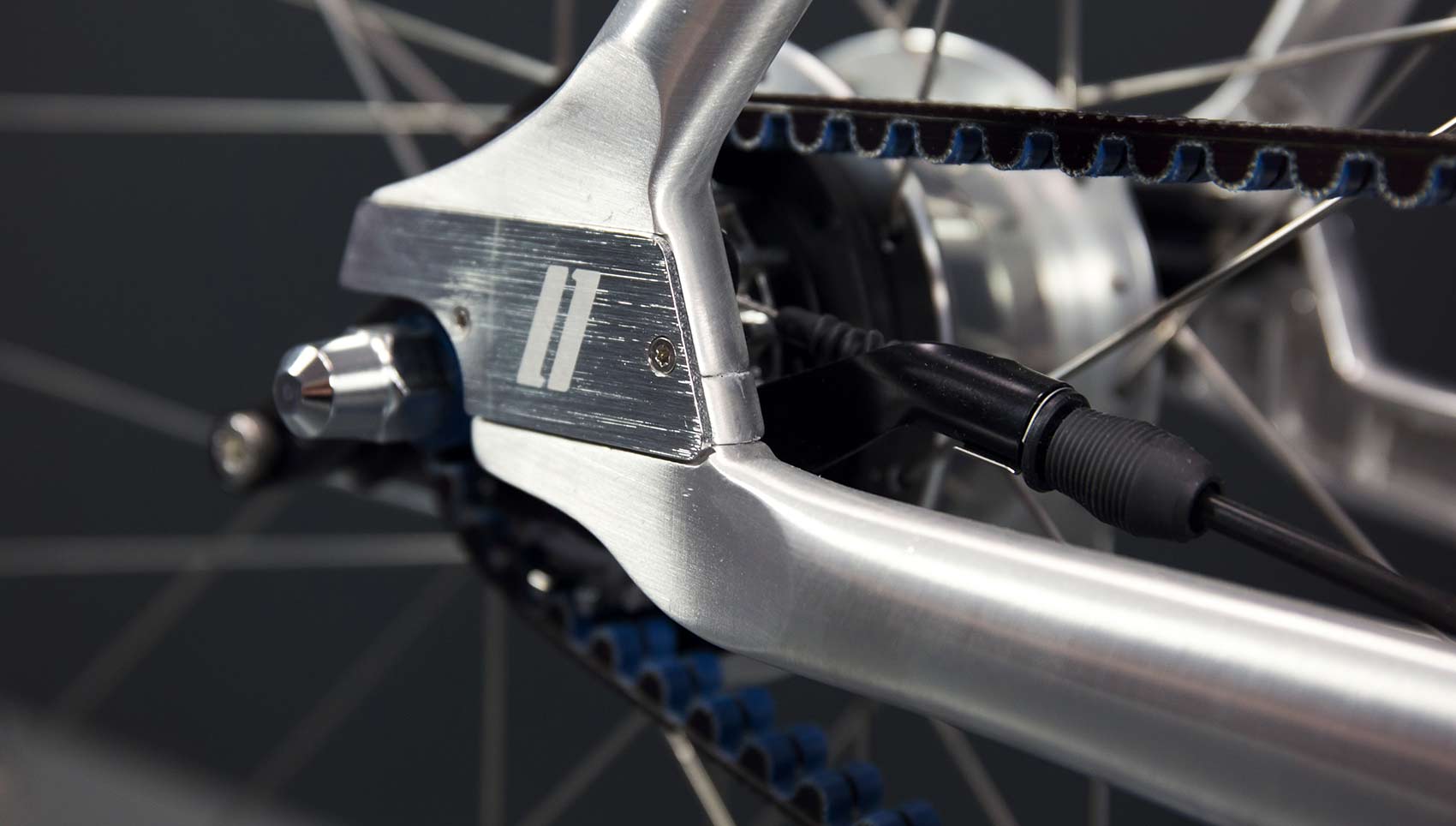

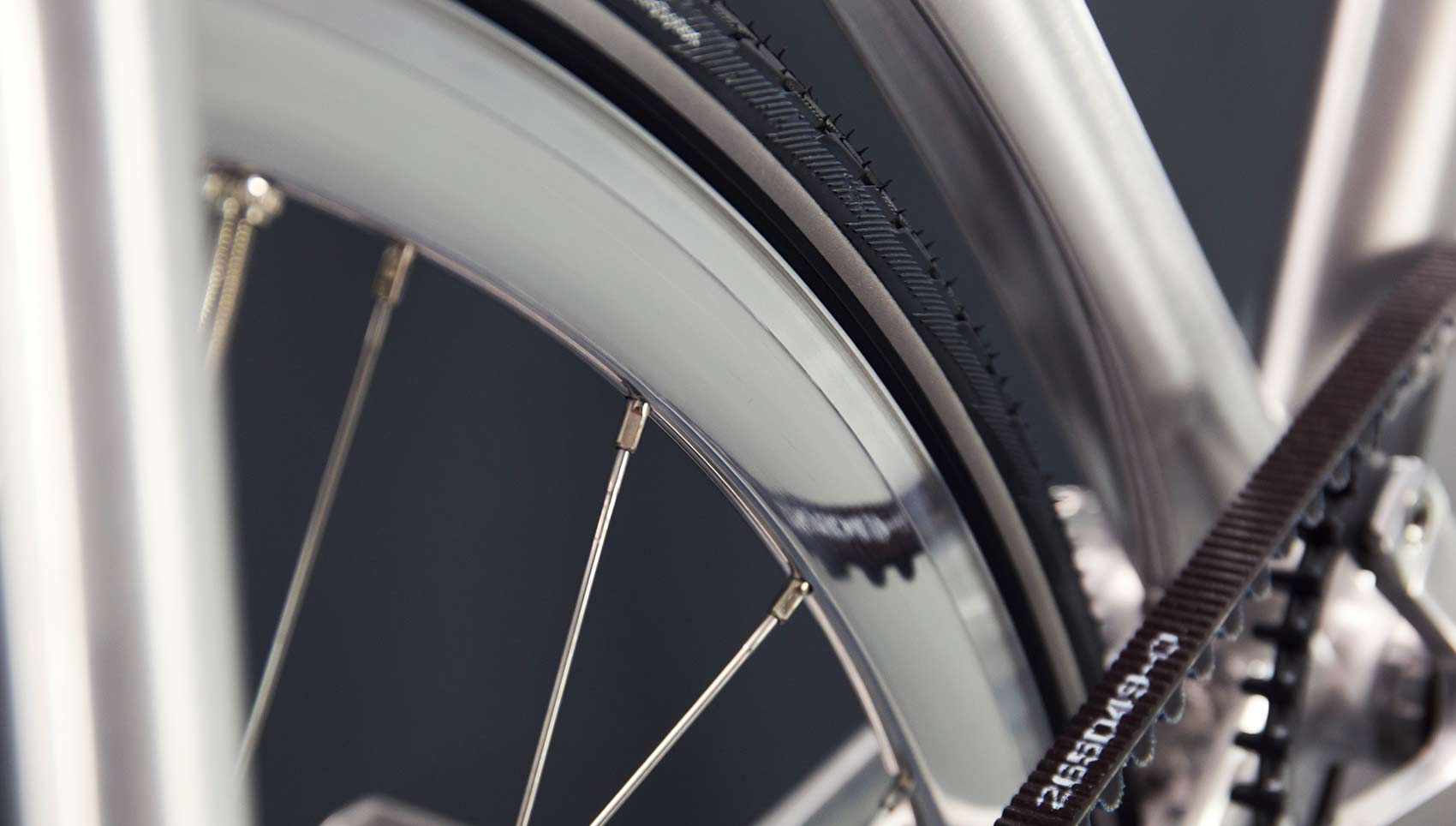

Gates Carbon Drive

Lightweight carbon belt ensures impressive efficiency and longer lifespan. No noise during the ride, it does not require maintenance and oiling.

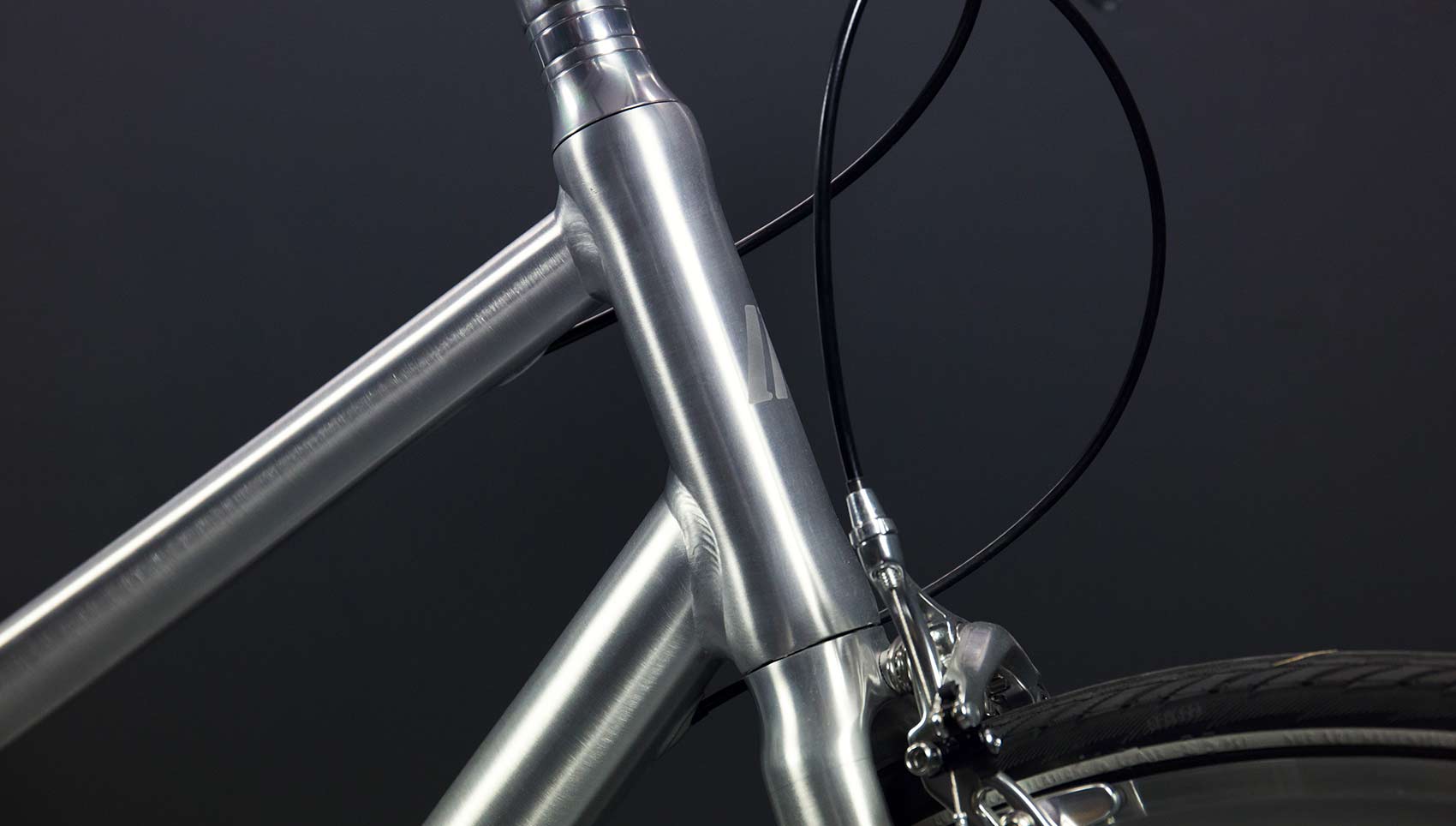

Aluminium Frame

Stable, robust and yet a true lightweight – the frame is made of high-quality 6061 aluminium.

Specifications

Product Bike

Brand Schindelhauer

Model Lotte

SKU 48006 D

Colour Red

For who Women

Weight 10.2 kg

Wheel size 28"

Rider height 168-177 cm

Gear system Hub

Frame material Aluminium 6061-T6

Frame size M

Fork Curved aluminium fork

Stem Schindelhauer

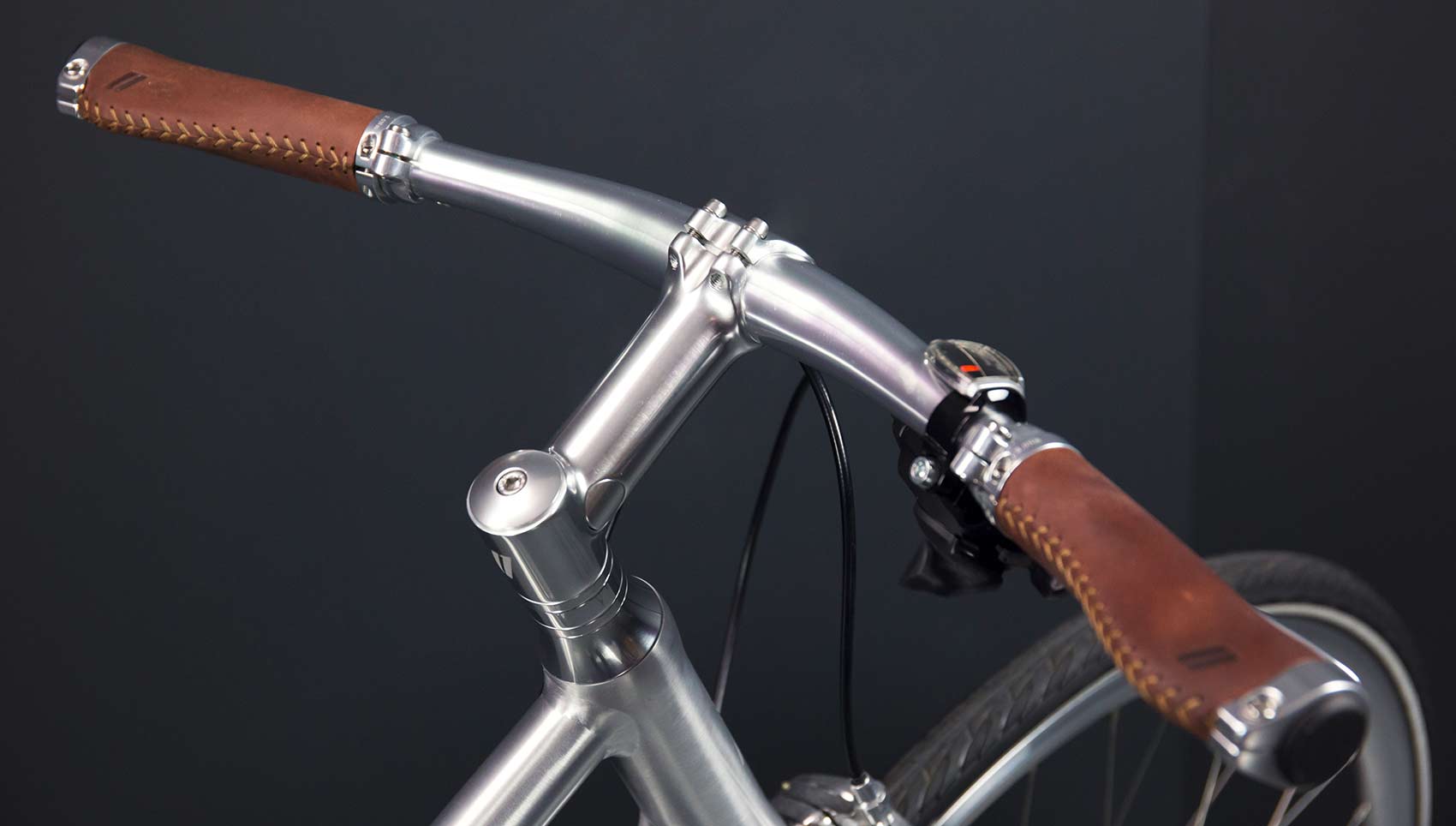

Handlebar Schindelhauer aluminium moon bar

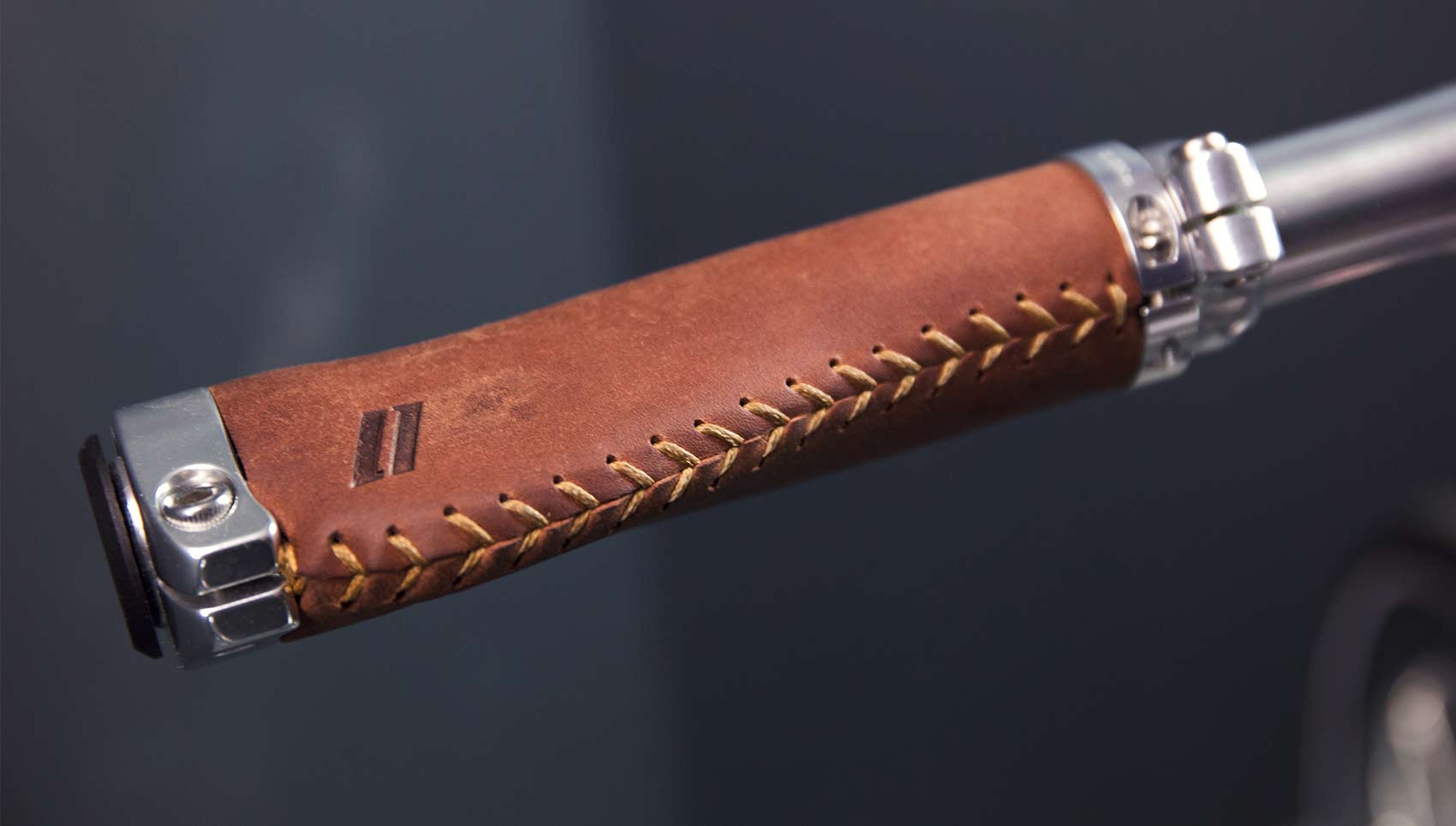

Grips Schindelhauer ergo leather grips

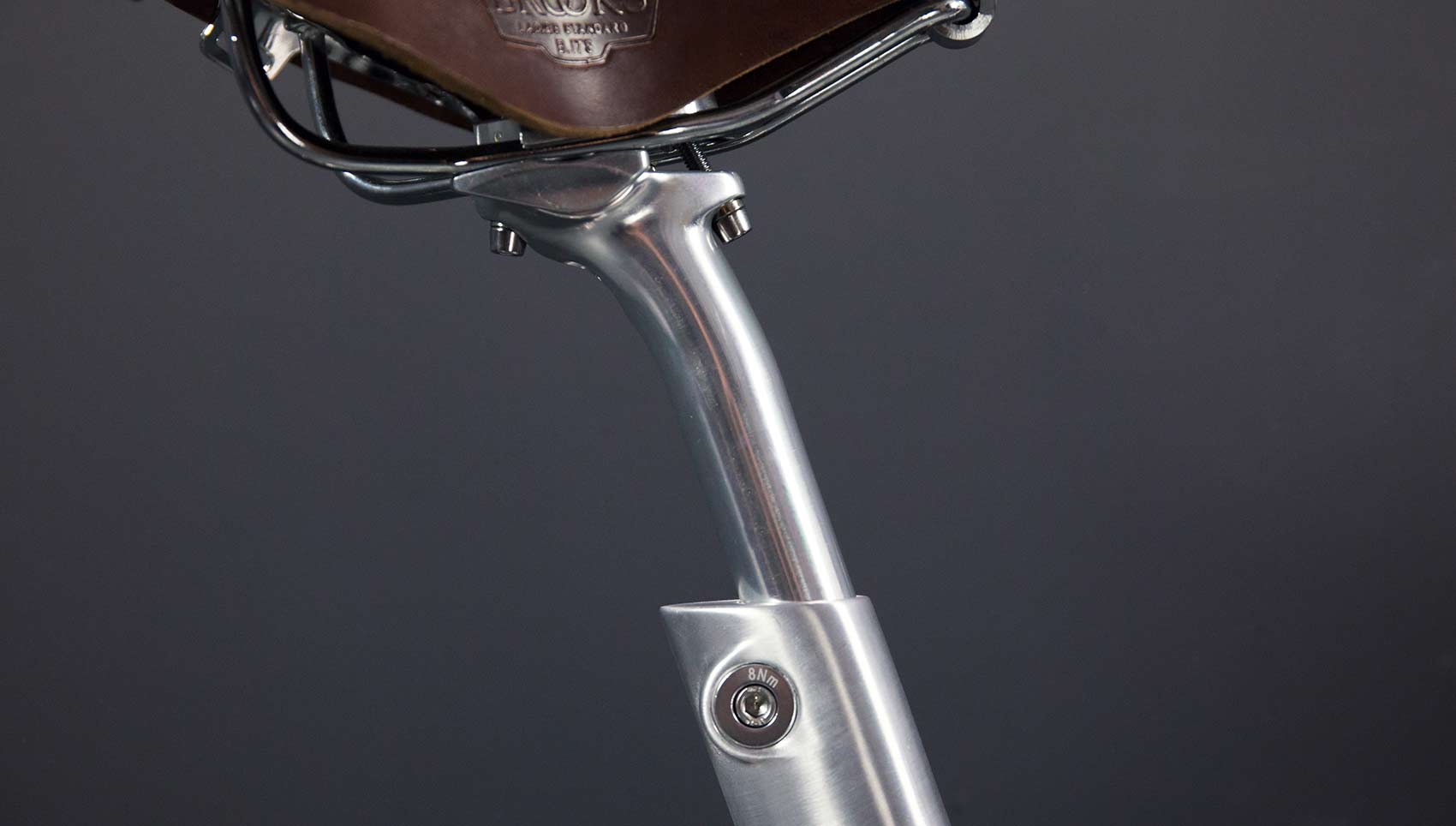

Seatpost Schindelhauer

Saddle Brooks B17 S Lady

Bottom bracket BSA, Shimano Alfine Hollowtech II

Crankset Shimano Alfine Hollowtech II

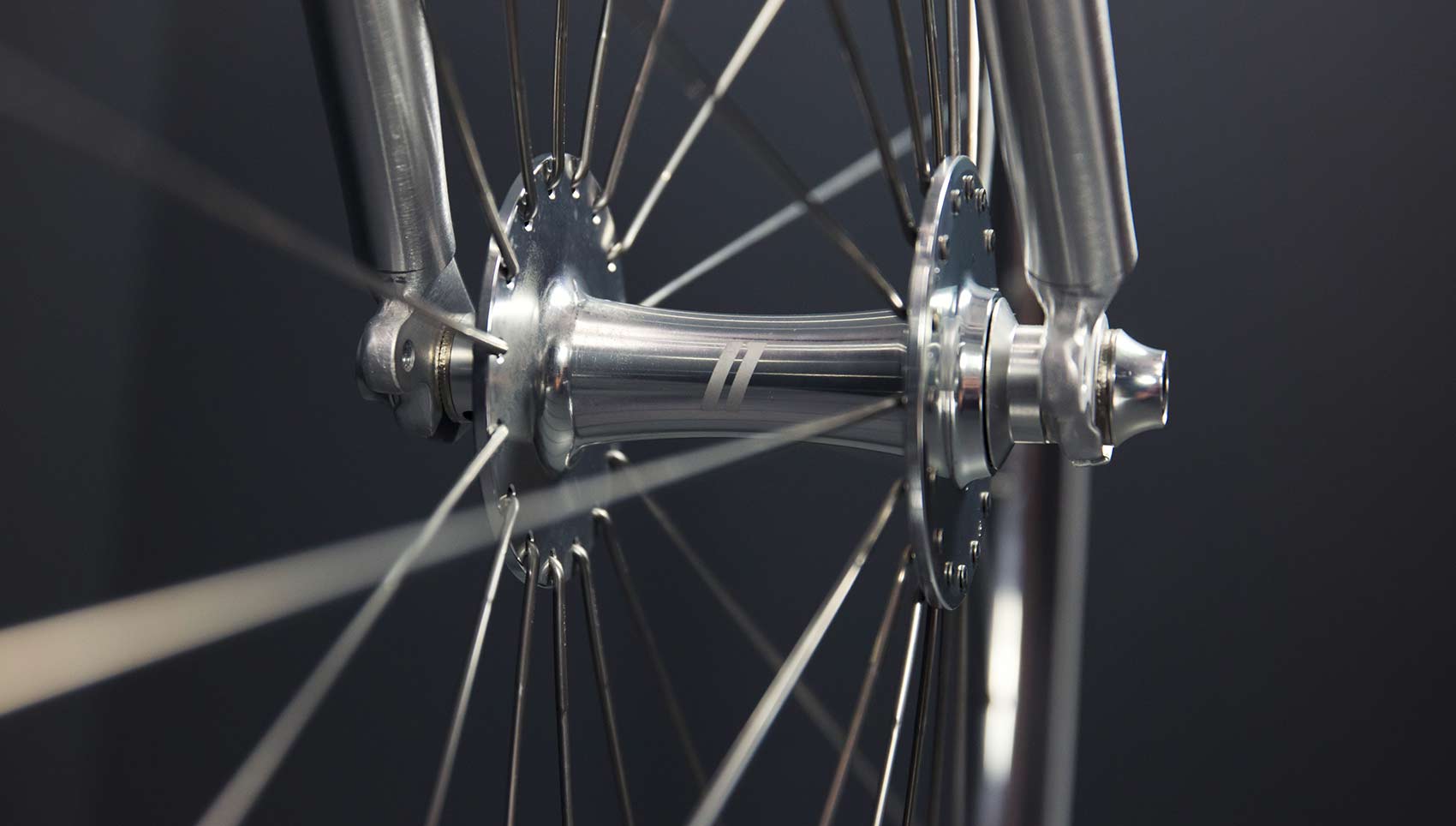

Hub front Schindelhauer high flange

Hub rear Shimano Alfine 8-speed

Rim Alexrims CX30

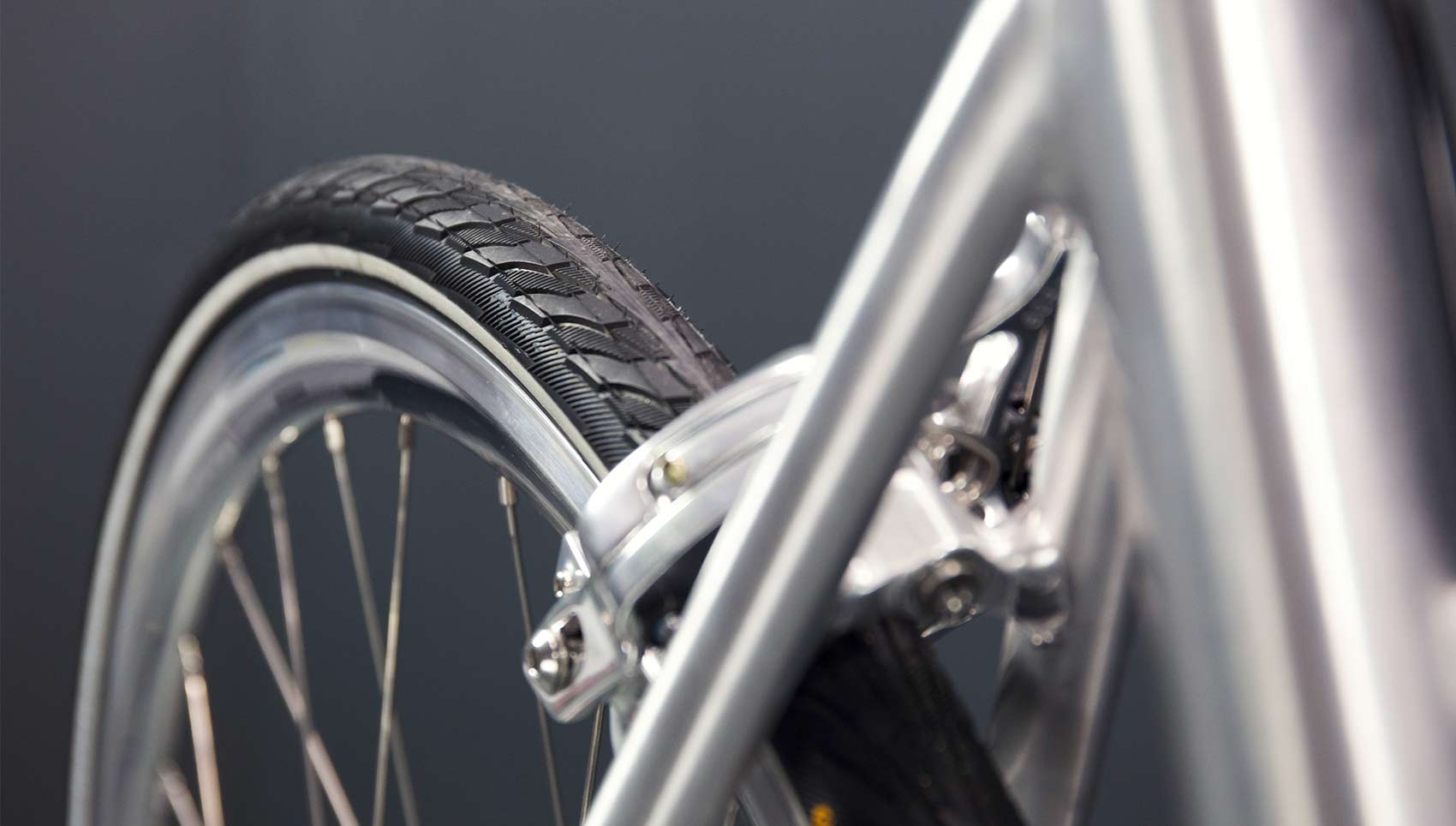

Tyre Continental Contact Urban with reflective stripes 28-622

Brake Tektro R539

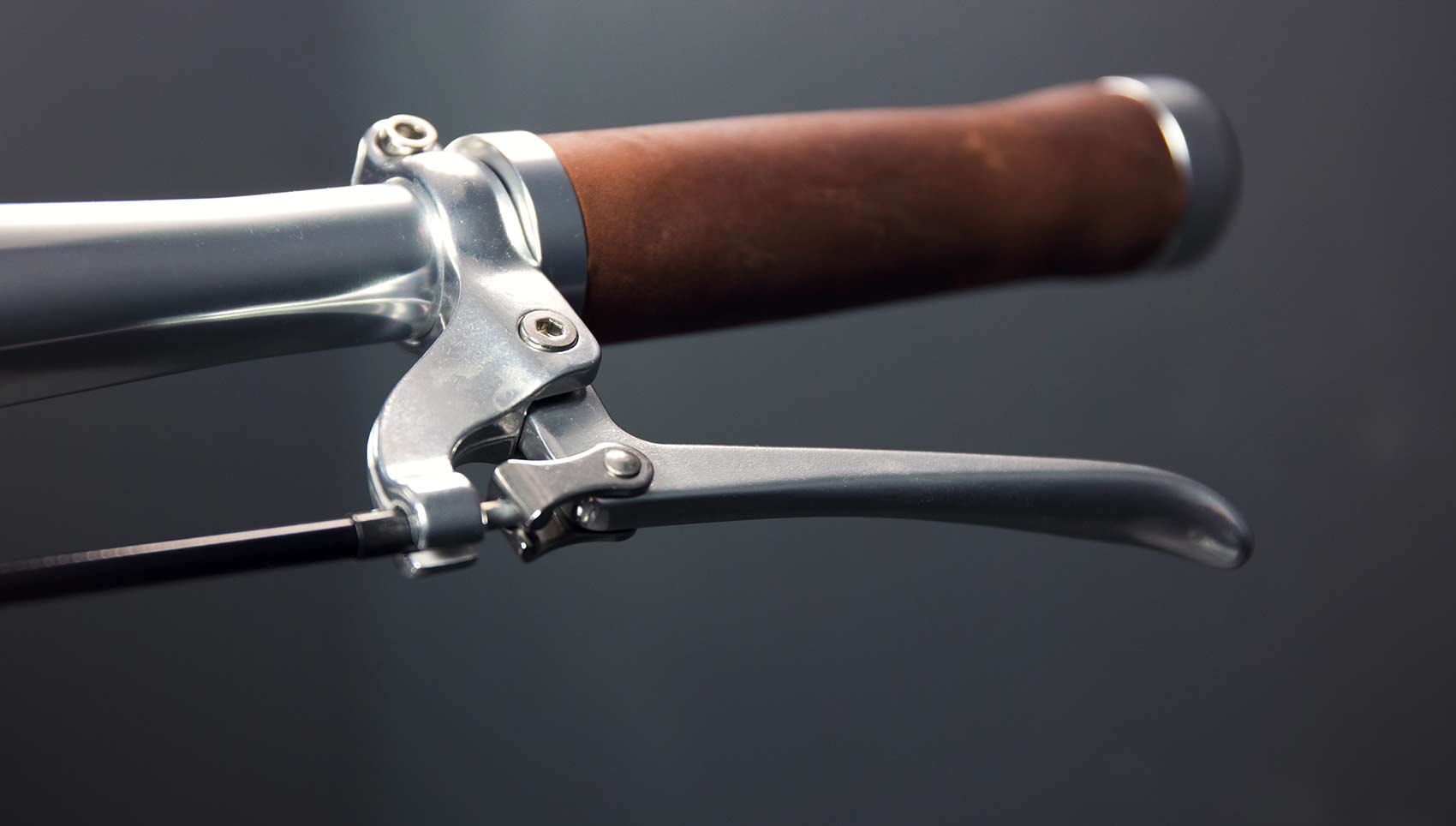

Brake levers Tektro FL750

Geometry

All measurements provided in cm unless otherwise stated.

Frame size:	M
Wheel size:	28”
А – Seat tube length:	56.0
В – Head tube length:	17.5
C – Chainstay length:	41.6
D – Head tube angle:	72.5°
E – Seat tube angle:	72.5°
F – Wheelbase:	102.9
G – Standover:	73.0
H – Reach:	40.7
I – Stack:	57.3
