01

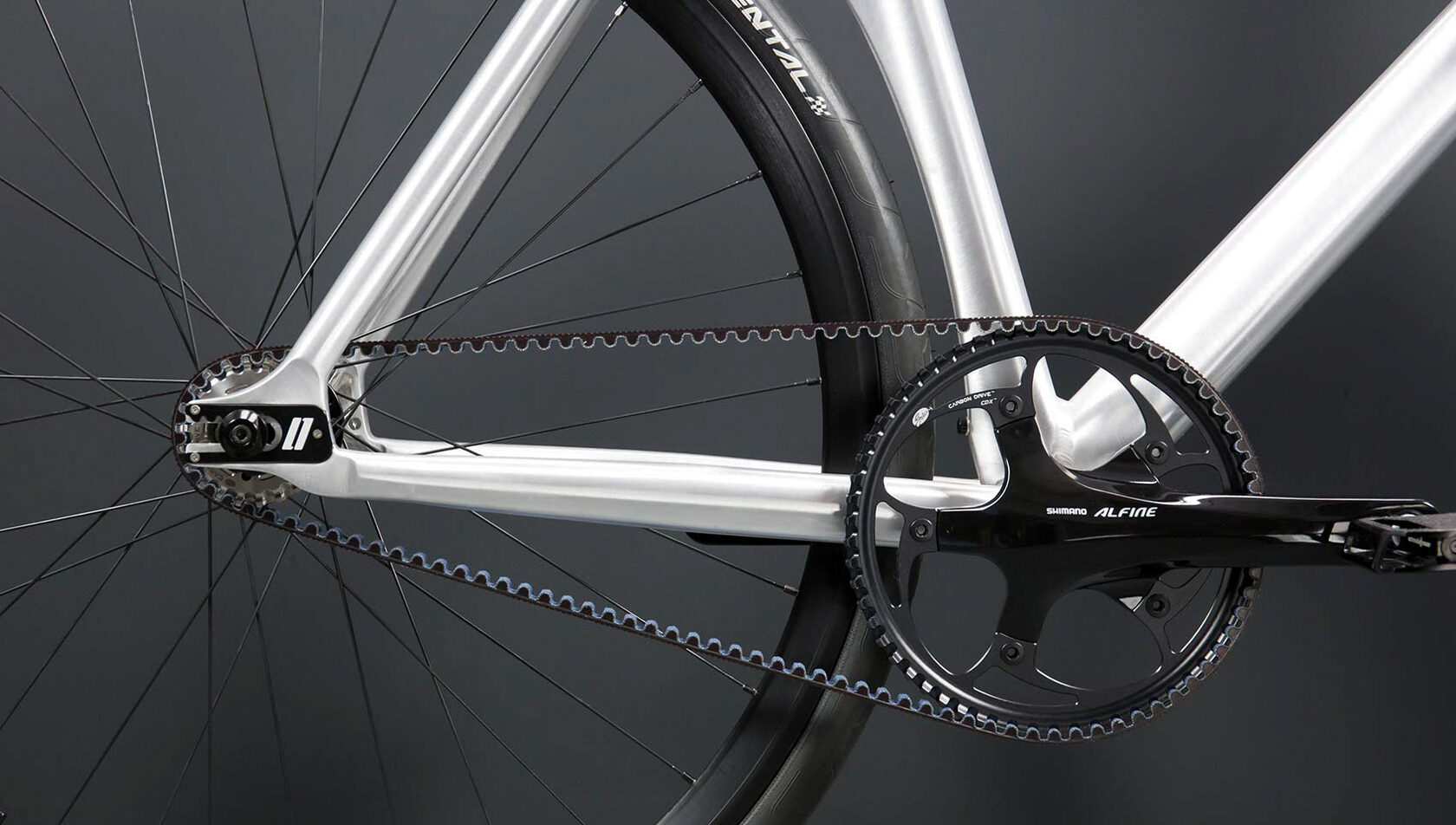

Gates Carbon Drive
Lightweight carbon belt ensures impressive efficiency and longer lifespan. No noise during the ride, it does not require maintenance and oiling.
1 / 19
Minimalistic design and reliable performance is what Viktor is about. Crafted to sail through the city at ease and in style. Schindelhauer innovations in the configuration add to its dramatic and elegant look.
02

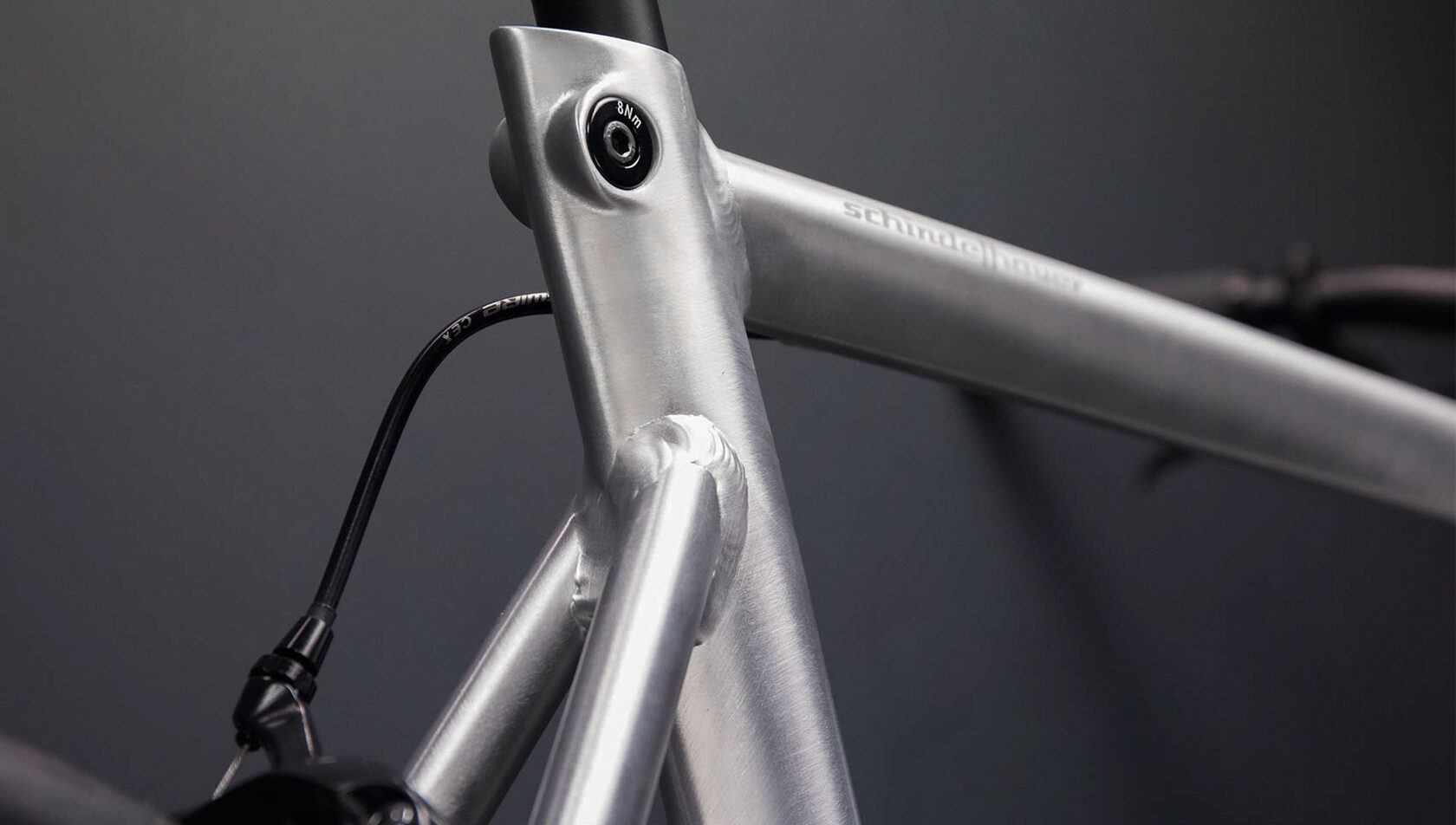

Aluminium Frame
Stable, robust and yet a true lightweight – the frame is made of high-quality 6061 aluminium.
Product
Bike
Brand
Schindelhauer
Model
Viktor
SKU
48009 D
Colour
Black
For who
Men
Weight
8.4 kg
Wheel size
28"
Rider height
161-170 cm
Gear system
Hub
Frame material
Aluminium 6061-T6
Frame size
S
Fork
Straight aluminium fork
Stem
Schindelhauer handlebar-stem combination

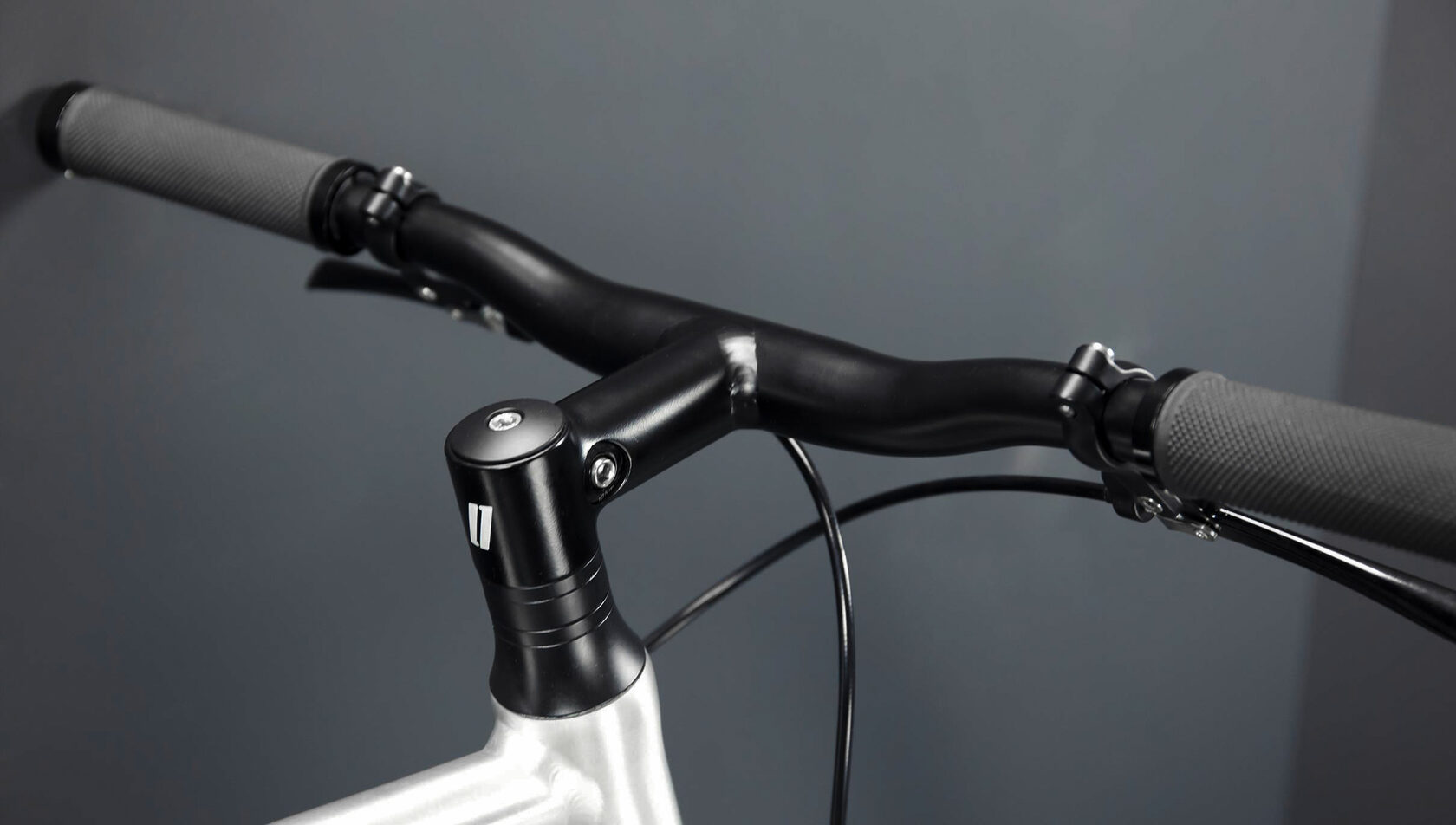

Handlebar
Schindelhauer handlebar-stem combination

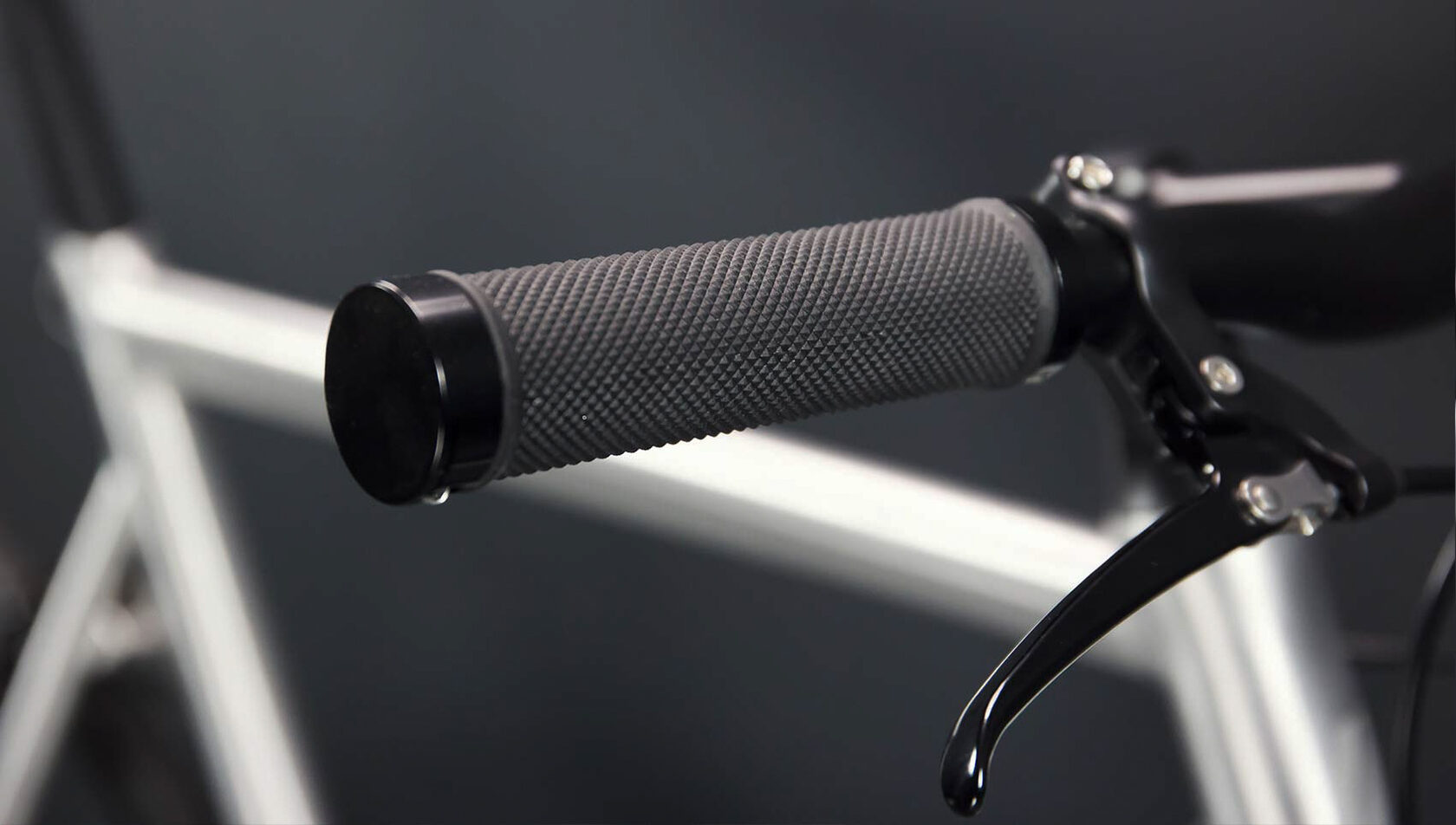

Grips
Schindelhauer bolt on

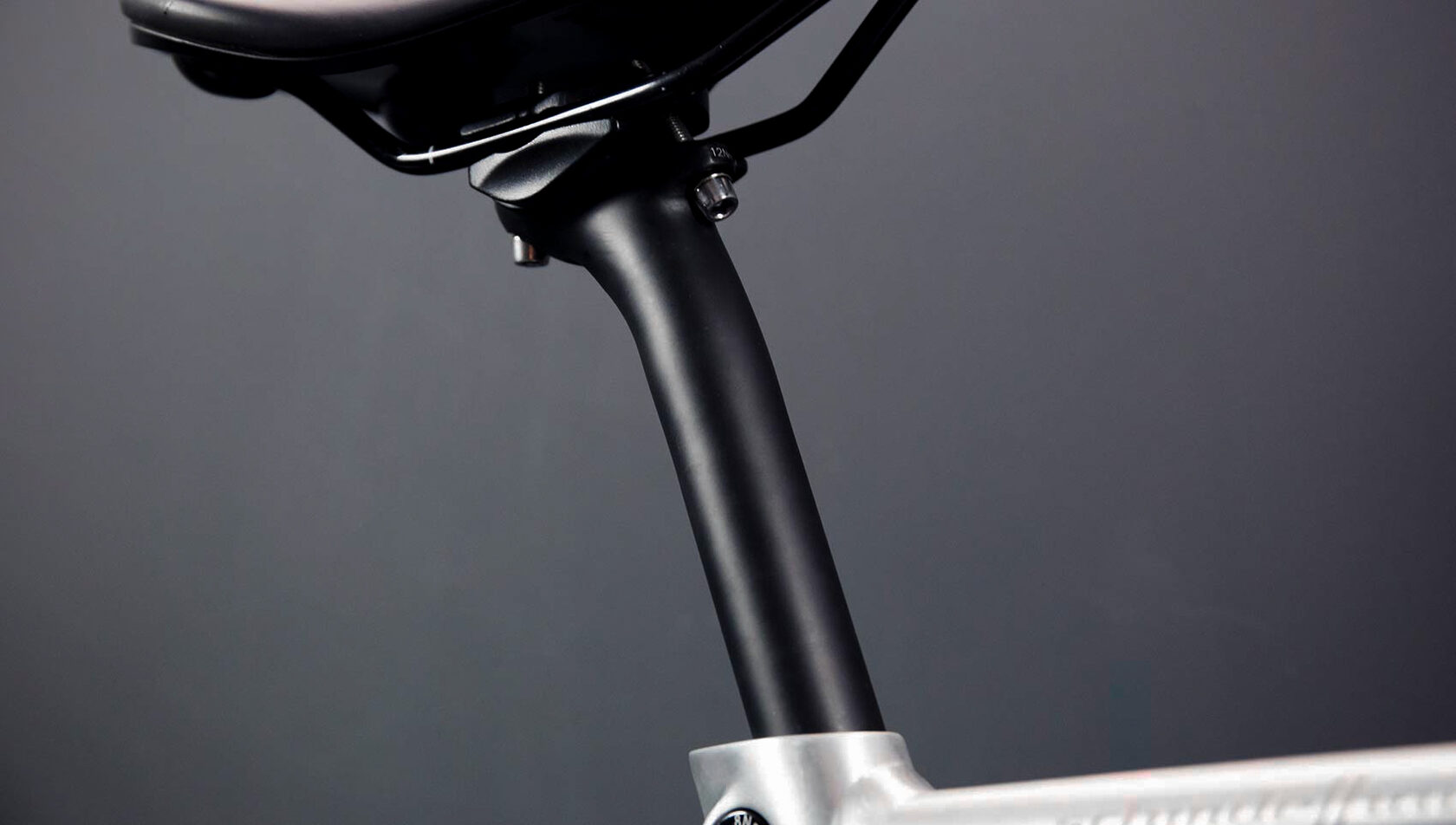

Seatpost
Schindelhauer

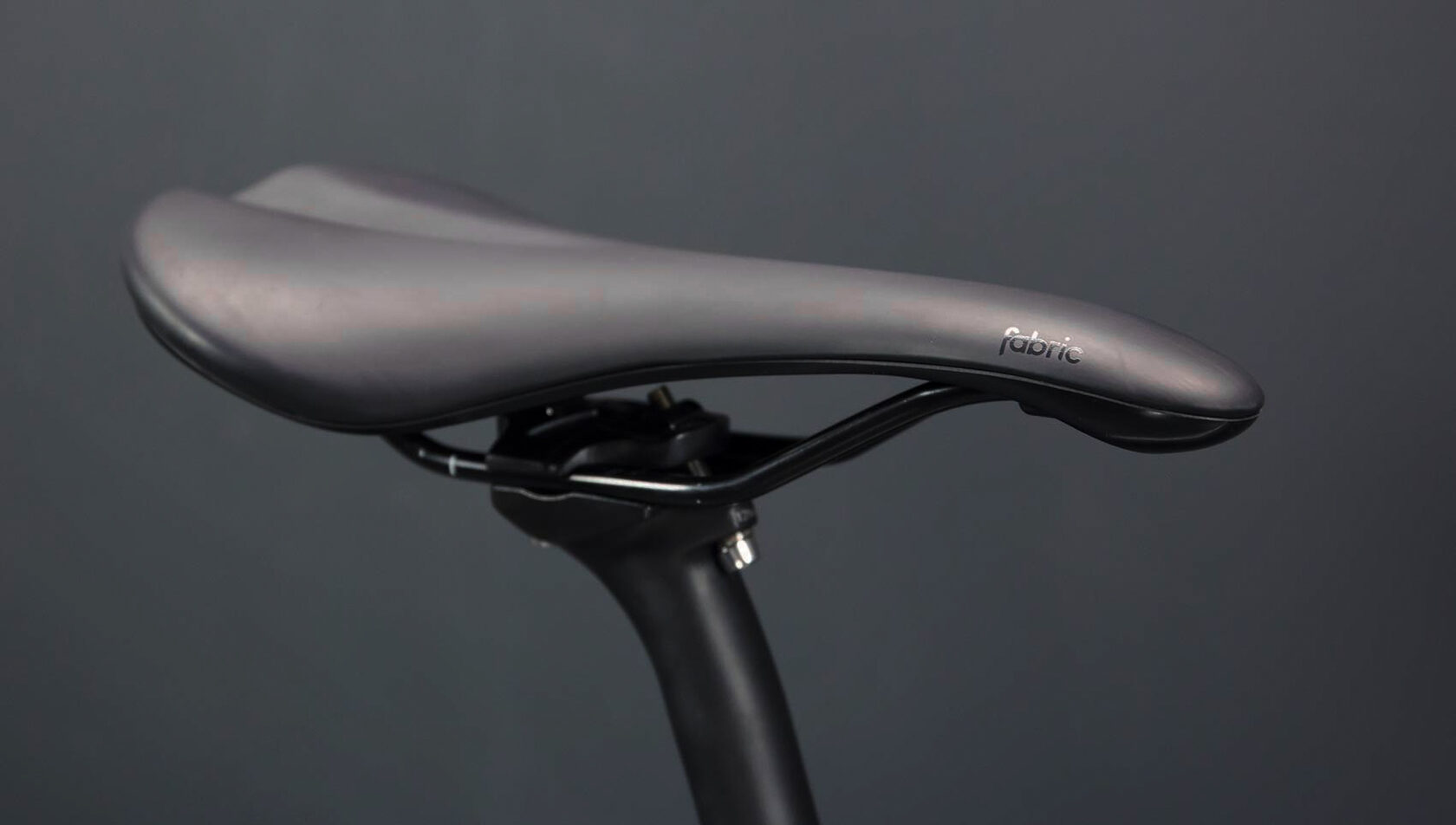

Saddle
FABRIC Scoop Radius Sport
Bottom bracket
BSA, Shimano Alfine Hollowtech II
Crankset
Shimano Alfine Hollowtech II

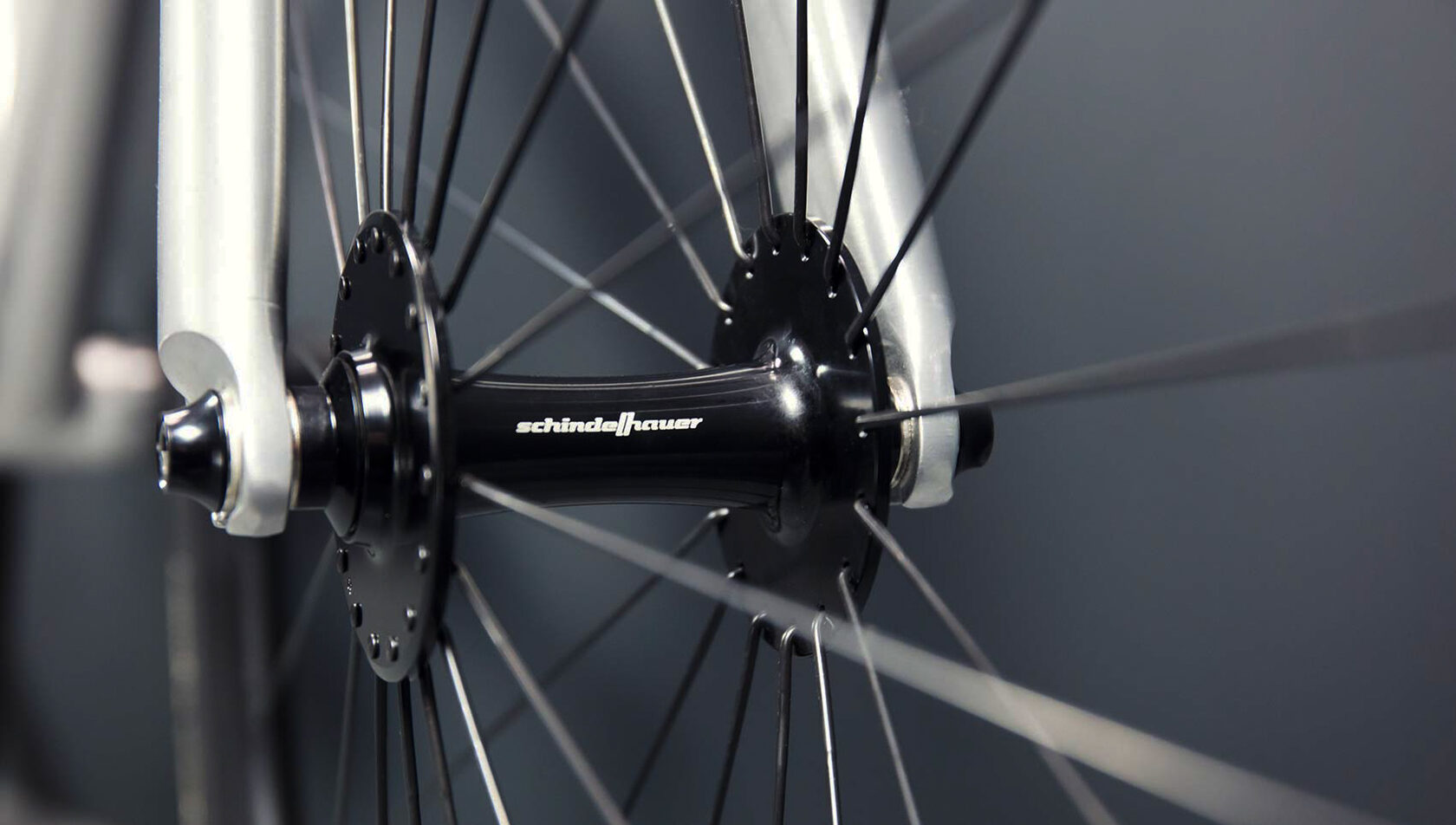

Hub front
Schindelhauer high flange

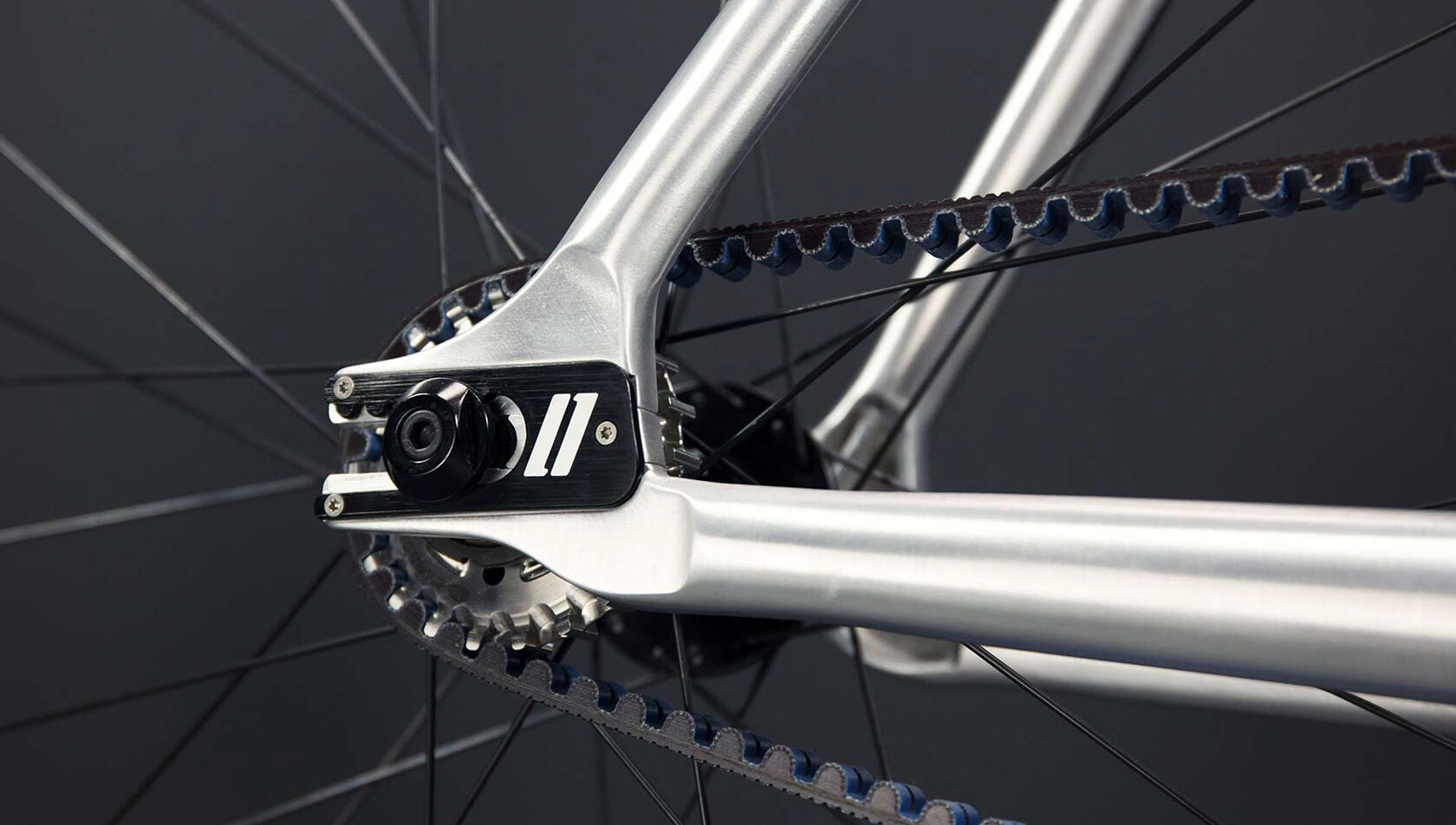

Hub rear
Flip-flop

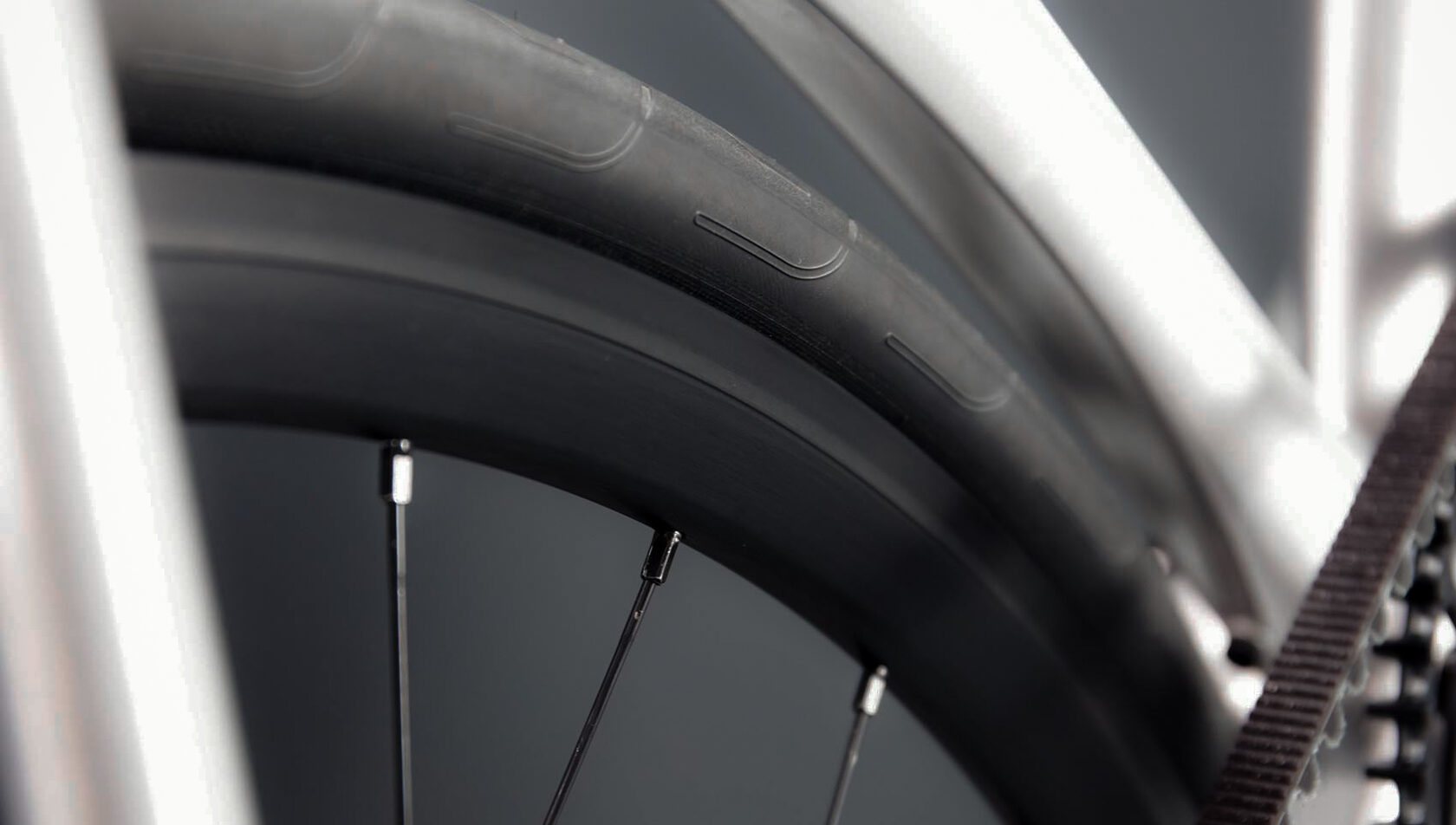

Rim
Alexrims CX30
Tyre
Continental Grand Prix 28-622
Brake
Tektro R317
Brake levers
Tektro FL750
Fit & Sizing
Bike fit and dimensions
Use the measurements below to understand the bike’s fit. Values are shown in centimetres unless stated otherwise.
- Frame size
- S
- Wheel size
- 28”
- А – Seat tube length
- 53.0
- В – Head tube length
- 13.0
- C – Chainstay length
- 38.9
- D – Head tube angle
- 73.0°
- E – Seat tube angle
- 73.5°
- F – Wheelbase
- 96.5
- G – Standover
- 79.9
- H – Reach
- 38.5
- I – Stack
- 52.1
Shopping with Electrabike
Delivery and payment, made simple
Choose the most convenient way to receive and pay for your bicycle. Exact conditions can be confirmed before placing the order.
Delivery
Delivery is available across Dubai and the UAE. Timing and cost depend on the destination and selected product.
Pickup
Collect your order from an available pickup point after confirmation that the bicycle is prepared and ready.
Payment
Pay securely online using the available payment methods. Instalment options may be offered at checkout.
Preparation
Bicycles are prepared and checked before handover. Final service details will be confirmed with the order.
Men's Bike Schindelhauer Viktor 1-Speed 53 Black Matte in life
