01

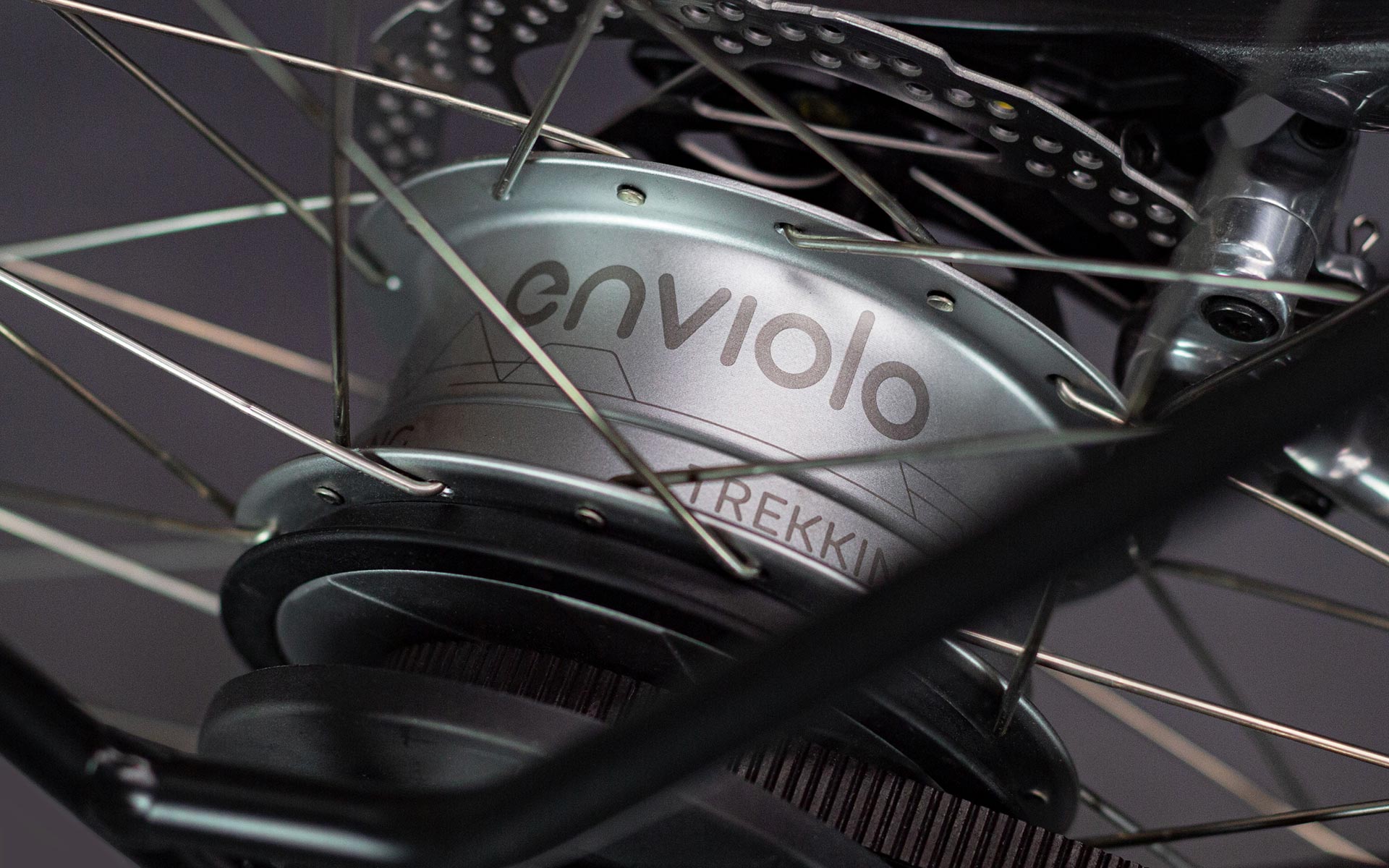

Enviolo AUTOMATiQ transmission
Based on planetary CVP technology, enviolo hubs allow an unlimited number of gear ratios. In the AUTOMATiQ version, the stepless change is fully automatic, based on the personal cadence.
1 / 15

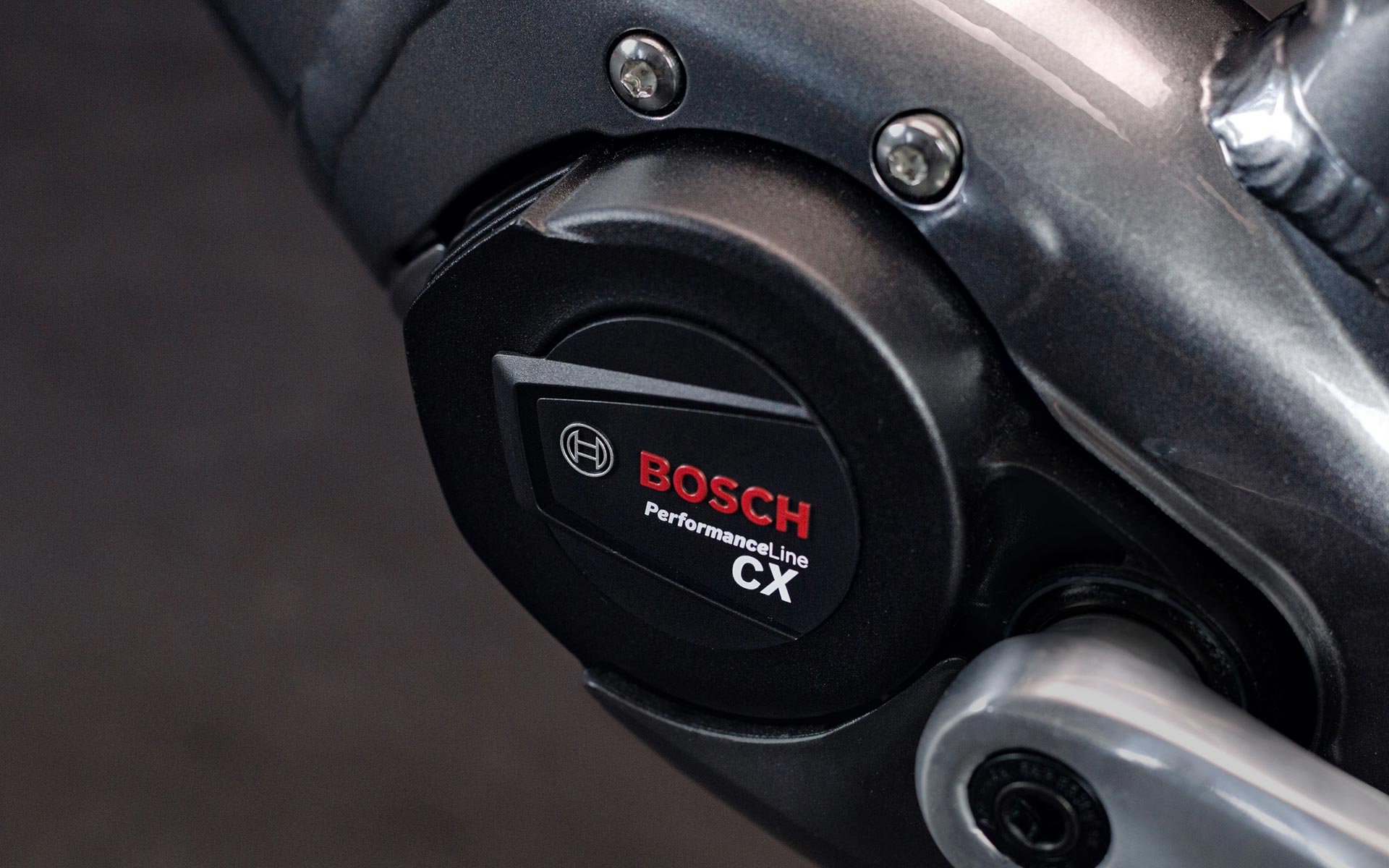

With the new generation of Heinrich, you have even more power and a variety of smart functions on board. Thanks to the maintenance-free Gates CDX belt drive and the Bosch Performance CX motor, you can reliably bring the full power of up to 85 Nm to the road in various support levels. With Heinrich, every ride is relaxed, because you simply leave the shifting to the automatic gear hub from enviolo. The harmonious combination of wide tyres and the right handlebar set-up also ensure comfort.
02
Removable battery
The PowerTube 500 battery enables a range which, depending on the motor level, can last for multiple trips to work, shopping or out into nature. The battery is removable and fully charged in 4.5 hours.
03
Smart connectivity

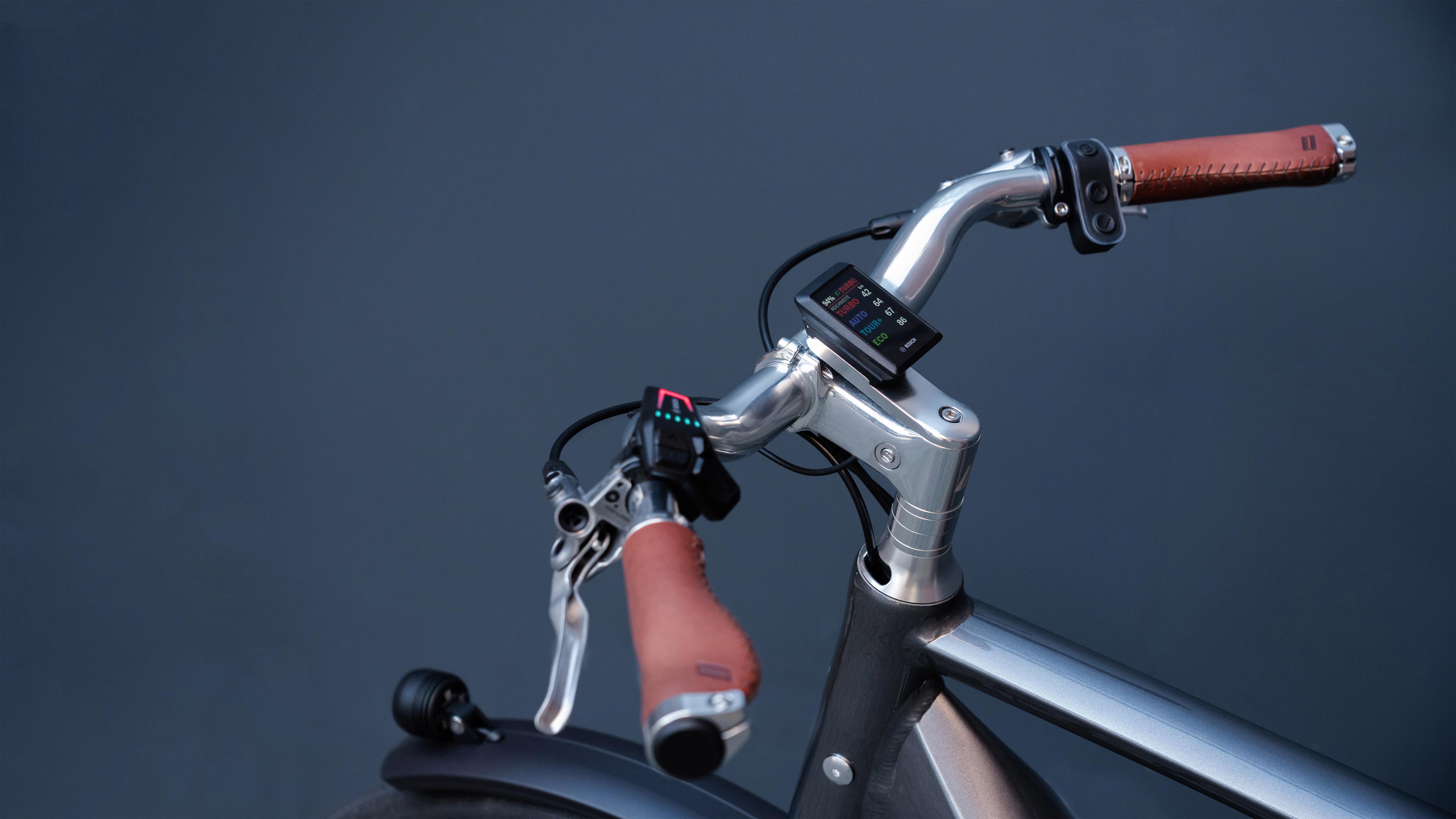

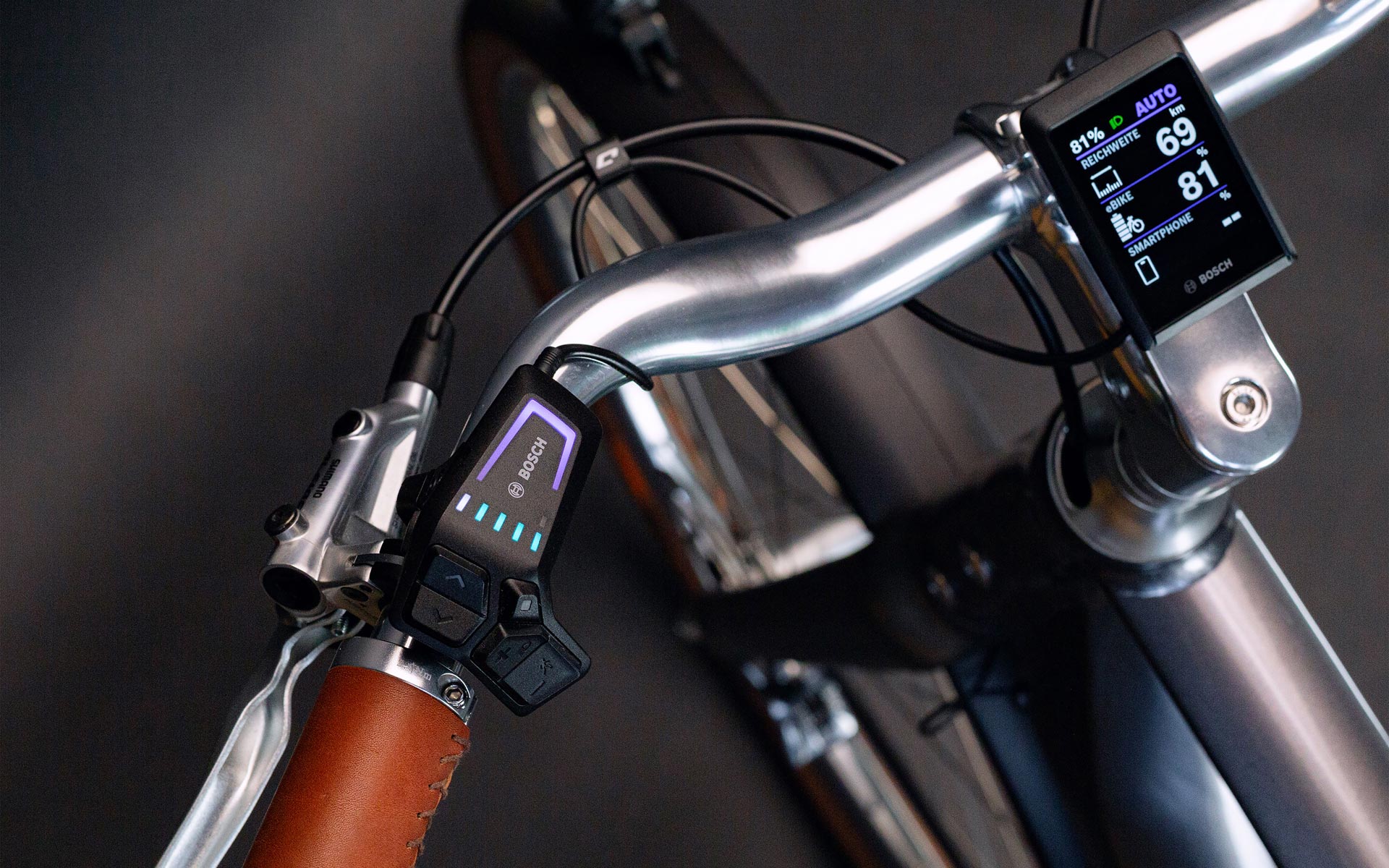

The FlowApp enables customised riding modes, profiles and route planning. GPS tracking is also possible via ConnectModule to protect against theft. With the intuitive on-board operating concept consisting of LED Remote and Kiox display, all central functions are easily accessible at all times.

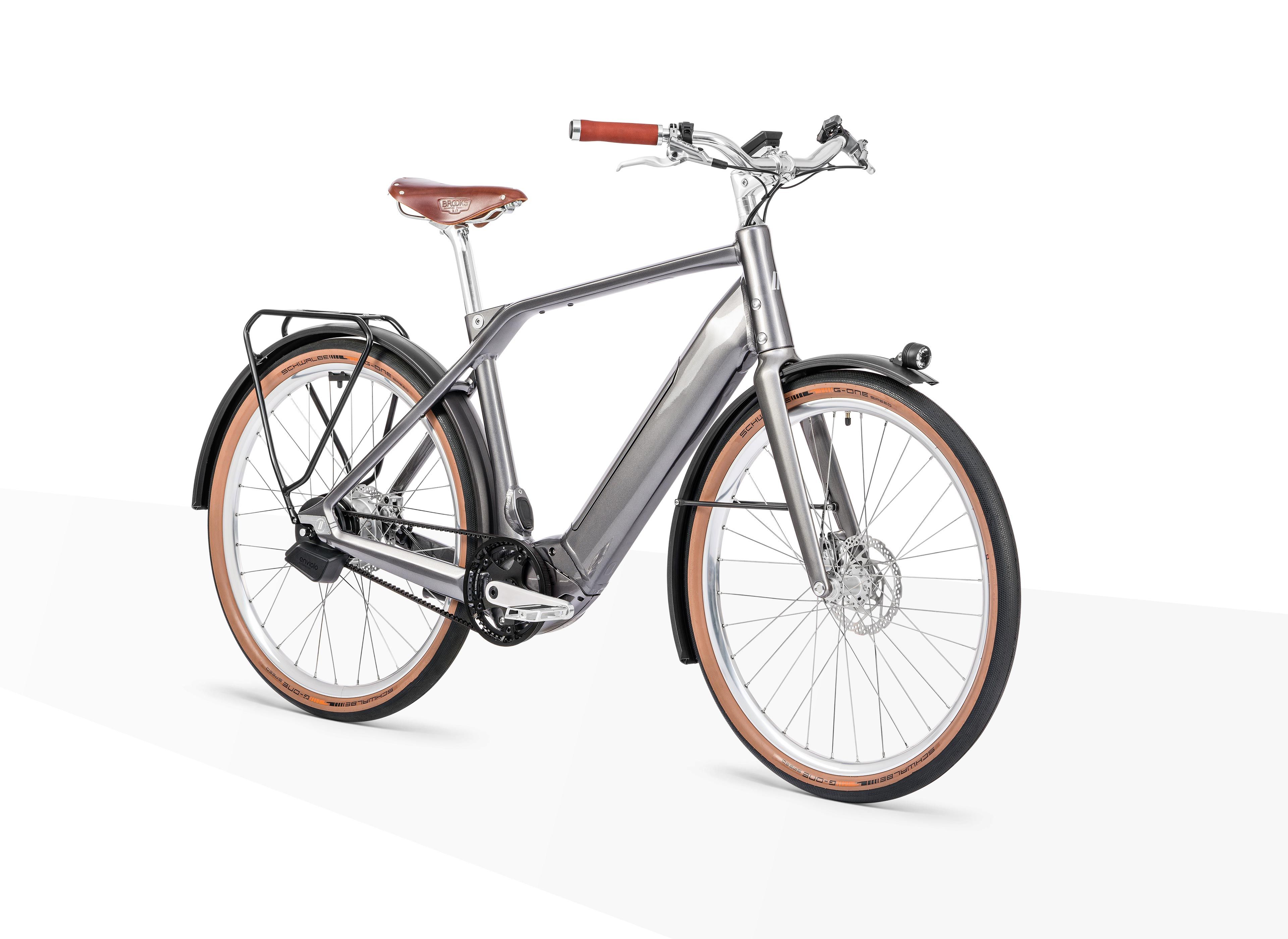

Product
E-bike
Brand
Schindelhauer
Model
Emil
SKU
48110 D
Colour
Silver
For who
Men
Weight
24.7 kg
Wheel size
27,5"
Rider height
168-177 cm
Gear system
Hub
Frame material
Aluminium 6061-T6
Fork
Aluminum hydroformed with a tapered rod for a 15 mm axle, with fastening for a disc brake "post mount"
Stem

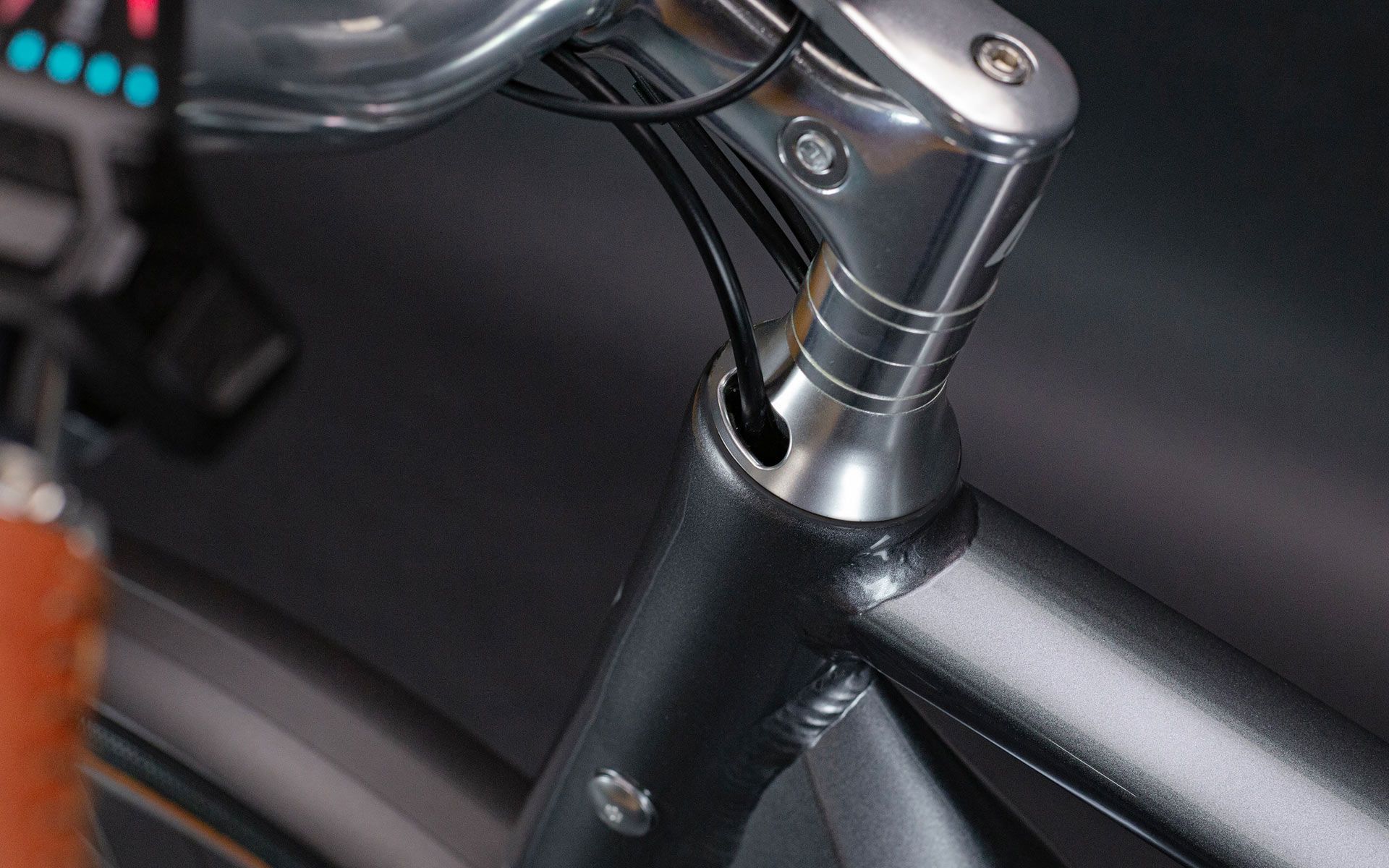

Aluminum (Al6061-T6), aerodynamically efficient triple butted frame, forged dropouts with integrated original belt tensioners, integrated seat clamp, smooth welds
Handlebar
Satori Seagull, aluminum
Grips
Schindelhauer
Seatpost
Schindelhauer
Saddle
Schindelhauer
Brake
Shimano - Alfine S7000, hydraulic, 160 mm rotor.
Brake levers
Shimano
Computer
iWoc ONE with Bluetooth and ANT+
Battery
The PowerTube 500 battery enables a range which, depending on the motor level, can last for multiple trips to work, shopping or out into nature. The battery is removable and fully charged in 4.5 hours
Fit & Sizing
Bike fit and dimensions
Use the measurements below to understand the bike’s fit. Values are shown in centimetres unless stated otherwise.
- Frame size
- M
- Wheel size
- 27.5”
- А – Seat tube length
- 45.0
- В – Head tube length
- 18.0
- C – Chainstay length
- 44.9
- D – Head tube angle
- 72.5°
- E – Seat tube angle
- 73.0°
- F – Wheelbase
- 107.7
- G – Standover
- 80.8
- H – Reach
- 41.9
- I – Stack
- 60.5
